Single use PVC manual resuscitator for pediatric

A manual resuscitation bag or self-inflating bag is used to deliver breaths manually (in order to maintain adequate oxygen to the brain and other vital organs) when an individual is unable to breath on his/her own.
  • Item NO.:

    TW8321
  • Payment:

    T/T 30% and balance before shipment
  • Product Origin:

    CHINA
  • Color:

    Blue
  • Shipping Port:

    Xiamen, Shanghai, any port in China
  • Product Detail

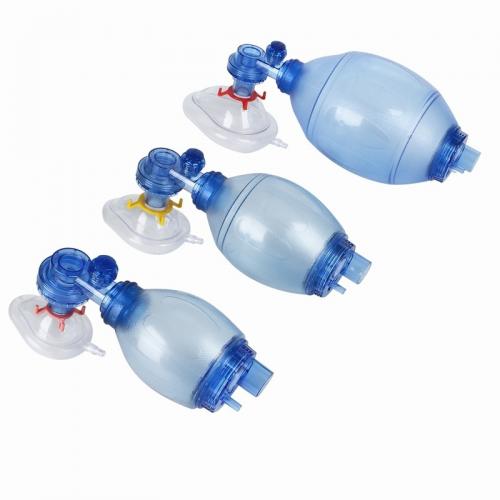

PVC resuscitator ambo bag set





This product is intended for pulmonary resuscitation for child/pediatric.
The accessories include PVC mask, Oxygen Tubing, Reservoir Bag.
For Single use only, 100% Latex Free.

Designed in accordance with the original double wall principle, the latex-free Ambu bags are more robust and provide users with exceptional visual and tactile lung condition feedback during manual resuscitation, making operation safer and more secure. Built-in pressure limitation prevents compression if there is any resistance in the patient’s airways.


Pediatric Size Specifications
 PVC child disposable manual resuscitator standard configuration including,
- Resuscitation bag
-PVC face mask size pediatric
-Reservoir bag 1600ml
-2.1 meters oxygen tube

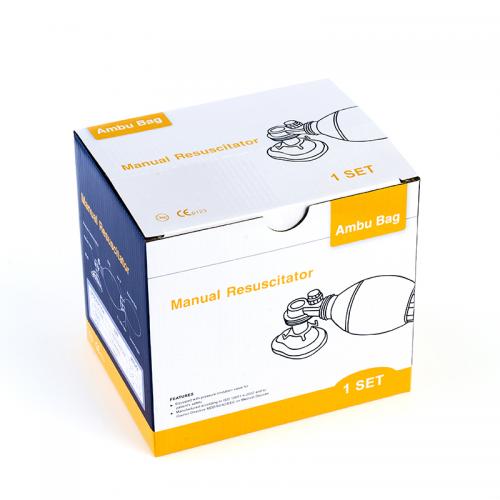

-In gift box
-24pcs/CTN, carton size: 58X37.5X52cm


Optional accessory: airway, mouth opener, PEEP valve


Datasheet

Infant

Pediatric

Adult

Body weight

10 kg

10kg33kg

33kg

Stroke volume

150 ml

350 ml

800 ml

Resuscitator volume

340ml

680ml

1630ml

Dimensions

(Lenght×Diameter )

225×85mm

262×105mm

325×132mm

Resuscitator weight

350 g

410 g

600 g

Pressure limiting valve

40 cmH2O

40 cmH2O

60 cmH2O

Dead space

(patient valve)

7 ml

7ml

7 ml

Inspiratory resistance

5 cmH2O  (at 50 L/min)

Expiratory resistance

5 cmH2O  (at 50 L/min)

Bag reservoir volume

1600 ml

1600 ml

2000 ml

Patient connector

ISO  Ø22/15 mm

Recommended Operating temperature: -18 +50

Storage

-40 ℃+60 ℃



Company Information
Xiamen Winner is a professional supplier of first-aid & anesthesia products like manual resuscitator, face masks, air splints, CPR mask and extrication collar.We have our own factory in Xiamen and it operates under ISO 13485:2003-, ISO 9001:2000- and ISO 10993-4:2002- certified management systems and all of our products carry CE marks.

Why you choose to cooperate with Xiamen Winner?

When You Work with Winner Medical, You Work Directly with a Real Quality Factory Supplier in China. We never take our role as market leader for granted.   Instead, we constantly innovate and improve to remain number one.


How do you know it is time to use an Ambu bag/Manual resuscitator?

Manual ventilation most often occurs when the patient's respiratory effort is inadequate. When a patient is not breathing or needs assistance to breathe fully, the Ambu bag is used in place of mouth-to-mouth resuscitation. This might happen in situations such as drowning, cardiac arrest, or a drug overdose. Therefore Ambu bag is very important rescue tool for lifesaver.


What is the function of PEEP?

PEEP-prevents the lung from collapsing at end‐exhalation.
PEEP makes oxygen saturation (SpO2) increase and reduces lung damage.
